Product Description

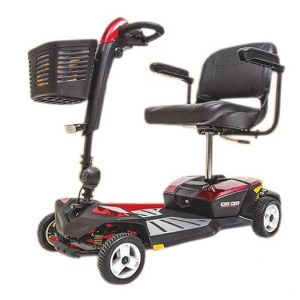

The Go-Go LX with CTS Suspension (Comfort-Trac Suspension) brings a new level of performance features and value to travel mobility.  Featuring CTS independent front and rear suspension, sleek style, feather-touch disassembly and standard lighting, the Go-Go LX with CTS Suspension is the most advanced travel product available.

Features

• CTS Suspension (Comfort-Trac front and rear independent suspension)
  Feather-touch disassembly permits simple frame separation with only one hand
• Pride’s exclusive black, non-scuffing tyres
• Auto-connecting front-to-rear cable
  Front frame-mounted seat post offers maximum stability
• All-new frame design easily disassembles into 5 super lightweight pieces for convenient transport and storage
• Modular design for easy serviceability
• Microprocessor-based controller offers optimal power management and added safety features
• Standard front tiller-mounted basket included
• Convenient off-board dual voltage charger can charge battery pack on-board or off-board
• Charger port in tiller

Specification

Max. weight capacity		136 kg (300 lbs.)
Maximum speed		Up to 6.4 km/h (4 mph)
Ground clearance		3.8 cm (1.5”) at motor
Turning radius		116.2 cm (44.75”)
Overall length		104.1 cm (41”)
Overall width		52.1 cm (20.5”)
TYRES:	Front	5 cm x 17.8 cm (2” x 7”) solid
solid Anti-tips Rear	Rear	6.35 cm x 20.3 cm (2.5” x 8”)
Standard seating		Foldable, compact, vinyl-covered molded plastic
Drivetrain		24-volt DC motor
		sealed transaxle
Dual braking system		Regenerative and electromechanical
Battery charger		Off-board
Per-charge range		Up to 16.9 km (10.5 miles)
Battery requirements		(2) 12V deep-cycle (standard)
Compatible batteries		17 AH
WEIGHT:	Batteries (2 required)	17 AH (13.8 kg (30.4 lbs.) battery pack)
	Weight w/o battery pack	39.6 kg (87.4 lbs.)
	Heaviest piece	16.6 kg (36.6 lbs.) (front section)

Product information Sheet – GoGo LX Scooter
