Product Description

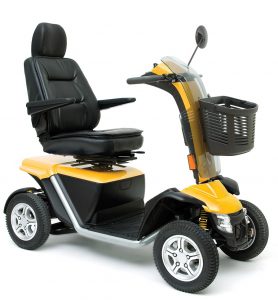

Bristling with high performance features like full suspension and a hydraulic sealed brake system, the Pathrider 140 XL is a powerful blend of power and precision.

The Pathrider 140 XL is equipped with sleek aggressive style and a wealth of standard luxury touches including a wraparound easy drive tiller and LED lighting, making it the ultimate outdoor scooter.

Features

• Full suspension for optimum handling
• Sealed hydraulic brakes
• Large 33 cm (13”) pneumatic tyres for excellent outdoor performance
• Full lighting package including directional signals and headlight
• Easy drive tiller with wraparound handles
• Easily accessible tie down points (for transport of unoccupied scooter)
• Rear view mirror standard
• Front shield standard
• Pillow-top seat

Colours available; Candy Apple Red, Yellow or Silver

Specifications

Weight capacity:	181 kg (400 lbs.)
Maximum speed:	Up to 15 km/h (9.32 mph)
Ground clearance:	13.33 cm (5.25”) at shroud
Turning radius:	210.8 cm (83”) right/ 208.3 cm (82”) left
Overall length:	142.8 cm (56.25”)
Overall width:	69.2 cm (27.25”)
Front tyres:	10 cm x 33 cm (4” x 13”)
pneumatic Rear tyres:	10 cm x 33 cm (4” x 13”) pneumatic
Seat-to-deck:	53 cm (21”)
Seat-to-ground:	72.39 cm – 68.58 cm (28.5” – 27”)
Suspension:	Front & rear
Range per charge:	Up to 35 km (21.7 miles) (with 75 AH batteries)
Maximum obstacle climbing ability:	13 cm (5”)
Total weight without batteries:	117.70 kg (259.5 lbs.)
Heaviest piece when disassembled:	Main frame: 93.21 kg (205.5 lbs.)
Standard seating:	Type: Pillow top
	Weight: 21.77 kg (48 lbs.)
	Material: Black Vinyl
	Dimensions: width – 49.5 cm (19.5”) (overall width)
	depth – 44.5 cm (17.5”) (effective depth)
Drive system:	Rear-wheel drive, sealed transaxle, 24-volt DC motor
Dual braking system:	Regenerative and electromechanical (hand brake)
Battery requirements:	Two 12-volt, deep cycle
	Size: 70 AH (gel)
	Weight: 70 AH: 25 kg (55 lbs.) each
Battery charger:	8-amp, off-board

Product information Sheet – Pathrider 140xl
